2011 News

  • Inferred Resource contains approximately 763,200 ounces of gold
  • Indicated Resource contains approximately 96,400 ounces gold
  • East Coldstream Deposit occurs at surface and is open in both strike and dip
  • Awaiting assay results from recent drilling at Iris Lake located 1.5 km north of the East Coldstream Deposit

Vancouver B.C. September 20, 2011: Alto Ventures Ltd. (ATV: TSX-V) ("Alto") and Foundation Resources Inc. (FDN: TSX-V) ("Foundation") are pleased to announce the receipt of a draft of an NI43-101 Technical Report ( the "Report") including a Mineral Resource Estimate for the East Coldstream Gold Deposit ("Deposit") located on the Coldstream Property (the "Property) in Northwestern Ontario. There are currently four other significant gold targets (e.g., Iris Lake, Goldie Zone, Burchell West and Span Lake) on the Property which are not part of the current resource estimates. The Report was prepared by Wardrop, a Tetra Tech Company (Wardrop) and incorporates over 26,000 m of drilling that was completed on the deposit. Foundation is the operator of this project and owns 60% interest in the Property. Alto owns the remaining 40%.

Indicated and Inferred resources have been determined for the East Coldstream Deposit (see Table 1). At a cut-off grade of 0.4 g/t gold and using the Inverse Distance Squared (ID2) estimation method, the two parallel gold horizons contain an Indicated Resource of about 3.5 million tonnes with an average grade of 0.85 g/t gold. In addition, the Inferred Resource totals approximately 30.5 million tonnes with an average grade of 0.78 g/t gold. Table 1 provides a summary of the Resource Estimate at the 0.4 g/t cut-off. The Deposit is estimated to contain 763,276 ounces of gold in the Inferred category and 96,400 ounces of gold in the Indicated category

Table 1. East Coldstream Deposit Resource Estimation Summary at 0.4 g/t gold cut-off (using ID2 method)

Class Horizon Tonnes Above
Cut-off Grade
Average Grade
(g/t)
Au
Ounces
Inferred EC-1 20,732,000 0.77 515,454
  EC-2 9,801,000 0.79 247,822
  Total 30,533,000 0.78 763,276

Indicated EC-1 1,371,900 0.89 39,376
  EC-2 2,144,800 0.83 57,024
  Total 3,516,700 0.85 96,400

The Deposit is made up of two parallel horizons of strong alteration and deformation, the EC-1 and EC-2. These horizons contain "shoots" of significant gold mineralization. The EC-1 in this Report is the southern horizon and includes the previously known Main and Sanders zones which are on strike with each other and are connected by areas of low gold mineralization (see Figure 1). The EC-2 in this Report lies north of EC-1 and includes the previously referred North and East zones. These zones are also on strike with each other and are also connected by areas of lower grade gold mineralization. The EC-1 and EC-2 horizons appear to converge at depth into one wide zone of mineralization.

Table 2. Cut-off Sensitivities for the East Coldstream Deposit Resource Estimate

Class ID2 Cut-off
(Au g/t)
Tonnes Average Grade
(Au g/t)
Contained
Ounces Au
Inferred 0.2 55,563,000 0.56 994,157
  0.3 40,768,000 0.67 876,682
  0.4 30,533,000 0.78 763,276
  0.5 23,001,000 0.89 655,104
  0.6 16,976,000 1.01 549,109

Indicated 0.2 5,814,100 0.63 117,672
  0.3 4,514,500 0.74 107,522
  0.4 3,516,700 0.85 96,400
  0.5 2,807,200 0.96 86,194
  0.6 2,251,400 1.06 76,383

A cut-off grade of 0.4 g/t gold was selected to tabulate the total resources based on the results of similar gold projects located in Ontario and Quebec. In addition, the following parameters were considered; 4:1 stripping ratio, operating costs of $14.30/tonne at 10,000 tonnes per day, long term gold price of $US1,139/troy ounce, $US to $Cdn conversion of 1.00, and gold recovery of 95%. The resources block considers the mineralization to start at surface down to a depth of 400 m vertical for the deepest zone.

Mineral Resources are not Mineral Reserves and by definition do not demonstrate economic viability.

Resource Classification and Description of Block Model

Several factors were considered in the definition of a resource classification including: National Instrument 43-101 requirements, Canadian Institute of Mining, Metallurgy and Petroleum guidelines, the report author's experience with Archean and Proterozoic gold deposits, and spatial continuity based on variography of the assays within the drill holes.

Individual block models were established in Datamine for the zones using one parent model as the origin. Drill hole spacing varies from 25 m to 50 m. A block size of 10 x 10 x 10 m was selected in order to accommodate the drilling spacing and the nature of the mineralization. Sub-celling of the block model was used to allow the parent block to be split once in each direction to more accurately fill the volume of the wireframes, thus more accurately estimate the tonnes in the resource.

The interpolations of the two zones were completed using the Inverse Distance Squared (ID2) estimation method. The global block model statistics for the ID2 model were compared to the Nearest Neighbour (NM) model and the Ordinary Kriging (OK) model. In general there is agreement between the three models and larger discrepancies were reflected as a result of lower drill density in some portions of the model.

A copy of the final Report will be filed on SEDAR within 45 days of the date of this news release.

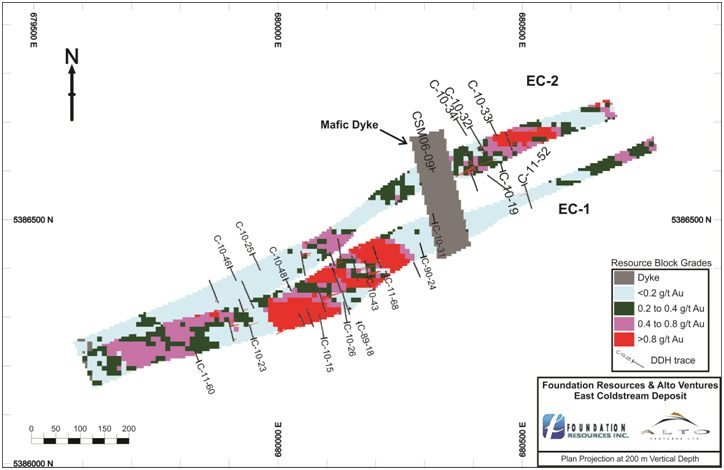

Figure 1. Plan View of the East Coldstream Gold Deposit showing the gold grade distribution of EC-1 and EC-2 at the 200 m vertical depth. Note the apparent convergence of the two mineralized horizons to the west.

Qualified Person

Todd McCracken, P.Geo, is a Qualified Person ("QP") for purposes of NI 43-101. He is responsible for preparing the Report and the Resource Estimate disclosed in the Report. Mr McCracken is an employee of Wardrop, and independent from the Companies as described in section 1.5 of NI 43-101. He has read and approved the technical disclosure in this press release.

About the East Coldstream Gold Deposit

The East Coldstream Gold Deposit is only one of several areas of significant gold mineralization on the Coldstream Property. Other areas include Iris Lake, Span Lake, Goldie Zone and Burchell West. The Iris Lake area is located 1.5 north of the Deposit and drilling during the 2011 winter program intersected 8.39 g/t gold over 11 m (see news release dated March 22, 2011). Further drilling was carried out at Iris Lake as part of the recently complete 6,000 m summer program on the Coldstream Property. Results for the holes drilled in the Iris Lake area are pending.

The East Coldstream Deposit is hosted within mafic to intermediate metavolcanic rocks which have been intruded by dike/sill-like bodies of quartz-feldspar porphyries and gabbros. All these rock types have been variably altered (silica, hematite, carbonate, chlorite) and deformed by east- to east-northeast striking North Coldstream Shear/Deformation Zone. Gold is associated with 1 to 5 percent, fine-grained pyrite.

About the Coldstream Property

The 6,250 hectare Coldstream Property is located along the Trans Canada Highway 115 km west of the City of Thunder Bay, Ontario. The area is road accessible and has excellent infrastructure with a major power line and CN rail line passing just north of the property. Skilled labour is readily available locally.

For more details regarding the Coldstream Property, please visit our website at www.altoventures.com

About Alto Ventures Ltd

Alto Ventures Ltd. is an exploration and development company with a portfolio of highly prospective Canadian gold properties. The Company is active in Quebec in the Abitibi greenstone belt on the Destiny gold property and in Ontario, exploring in the Beardmore-Geraldton gold belt and the Coldstream project in the Shebandowan gold district.
